Station Post Insulators

  • ANSI TR202 Ceramic Station Post Insulators
ANSI TR202 Ceramic Station Post Insulators

ANSI TR202 Ceramic Station Post Insulators

  • Color: Brown/Gray
  • Trade Terms: FOB,CFR,CIF
  • Payment Terms: T/T, LC
  • Brand: Senduo
  • Product description:
  • INQUIRY

1. Name: ANSI TR202 Ceramic Station Post Insulators


2. Packing: Carton-4PCS/CTN, bulk cargo use carton with pallet to avoid broken


3. Quality:

ISO 9001

Type Test Report

Factory Test Report

Warranty 18 months from B/L date


4. Product Photo:

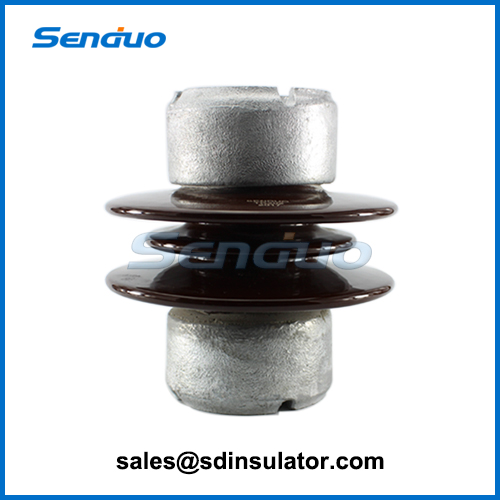

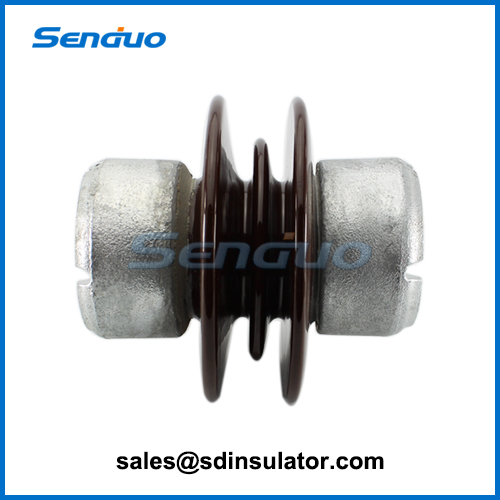

side view

senduo station post insulator tr202

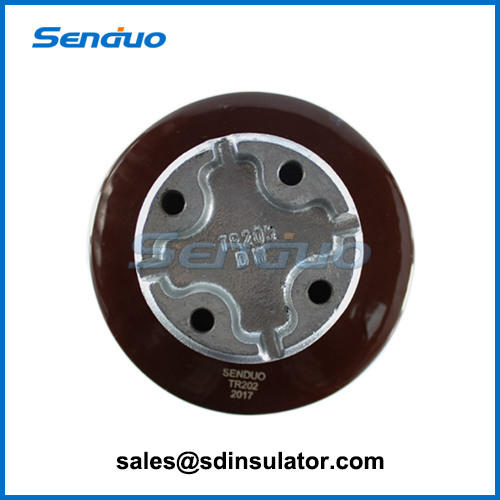

Top View

Ceramic Station Post insulator tr202-www.sdinsulator.com


5. Technical Data:

Creepage Distance 267mm
Cantilever Strength 8.9kN
Tension Strength 31kN
Torsion Strength 678N.m
Compression Strength 44.5kN
Power Frequency Dry Withstand Voltage 30kV
Impulse Withstand Voltage 95kV
Net Weight
5.5kg

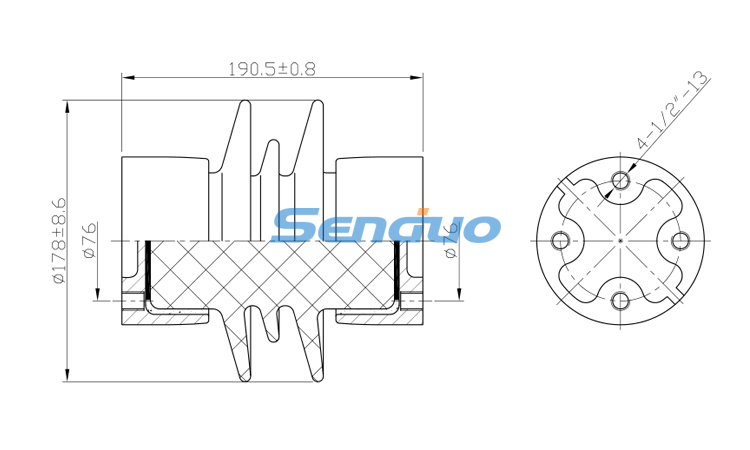

6. Product Drawing:


7. Certificate:

Senduo ISO certificate


8. Contact Us:

Want to buy ANSI TR202 Ceramic Station Post Insulators, please contact to sales@sdinsulator.com
